HAWK COMPACT CX Series is the ideal choice where factory space is limited. With a standard print area of up to 46cm x 50cm (18” x 20”) the Compact range offers the perfect combination of small footprint without compromising on print area or features.
Couldn't load pickup availability
Refresh

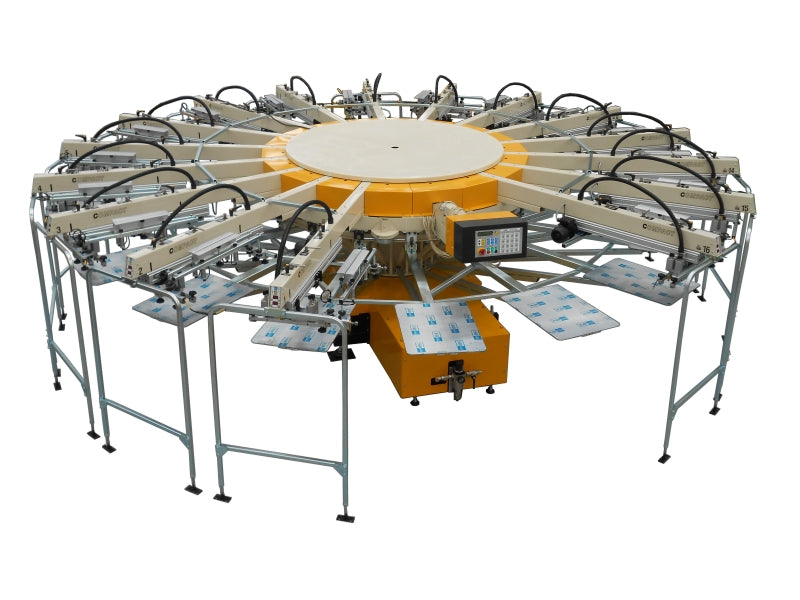

Compact CX16
Specifications
Colours : 16
Stations : 18
Indexer : Electric
Print Heads : Electric
Max Outside Frame Size : 610mm X 762mm (24" X 30")
Max Print Area : 457mm X 508mm (18" X 20")
Diameter : 5700
Weight : 3500kg
Standard Pallet Size : 470mm X 660mm (18.5" X 26")
Standard Squeegees & Flood Bars : 460mm
Standard Squeegee Rubbers : 69duro
Electrical Requirements 220v/3Ph : 21amps 50/60hz
Electrical Requirements 380-415v/3Ph : 23amps 50/60hz
Compressed Air Requirement : 9 l/sec 16 cfm @ 100 psi
Micro Reg Adjustment : Standard
AC Electric Rotation & Print Heads : Standard
Central Off Contact : Standard
Roto Print Program : Standard
Squeegee Cylinders Knurled Knobs : Standard
Squeegee Pressure Regulators : Standard
Pneumatic Screen Clamping : Standard
Multi-Functional Foot Switch Pedal : Standard
Individual Head Off Contact : Standard
Front, Centre & Rear Micro Registration : Standard
Calibrated Individual Off-Contact : Optional
