HAWK COMPACT CX Series is the ideal choice where factory space is limited. With a standard print area of up to 46cm x 50cm (18” x 20”) the Compact range offers the perfect combination of small footprint without compromising on print area or features.
Couldn't load pickup availability
Refresh

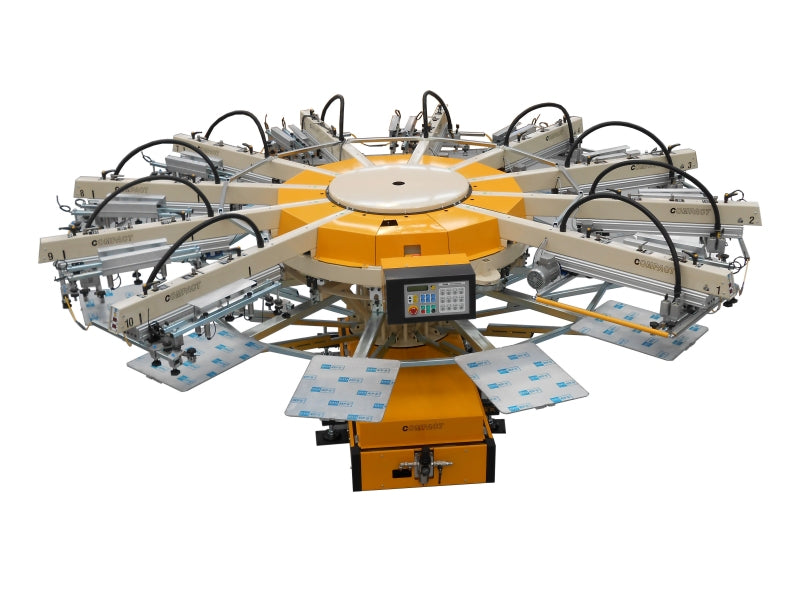

Compact CX10
Specifications
Colours : 10
Stations : 12
Indexer : Electric
Print Heads : Electric
Max Outside Frame Size : 610mm X 762mm (24" X 30")
Max Print Area : 457mm X 508mm (18" X 20")
Diameter : 4585mm (15' 0")
Weight : 1700Kg (3747lb)
Standard Pallet Size : 470mm X 610mm (18.5" X 24")
Standard Squeegees & Flood Bars : 460mm
Standard Squeegee Rubbers : 65 duro
Electrical Requirements 220v/3Ph : 15amps 50/60hz
Electrical Requirements 380-415v/3Ph : 17amps 50/60hz
Compressed Air Requirement : 4.2 l/sec 8 cfm @ 100 psi
Micro Reg Adjustment : Standard
AC Electric Rotation & Print Heads : Standard
Central Off Contact : Standard
Roto Print Program : Standard
Squeegee Cylinders Knurled Knobs : Standard
Squeegee Pressure Regulators : Standard
Pneumatic Screen Clamping : Standard
Multi-Functional Foot Switch Pedal : Standard
Individual Head Off Contact : Standard
Front, Centre & Rear Micro Registration : Standard
Calibrated Individual Off-Contact : Optional
