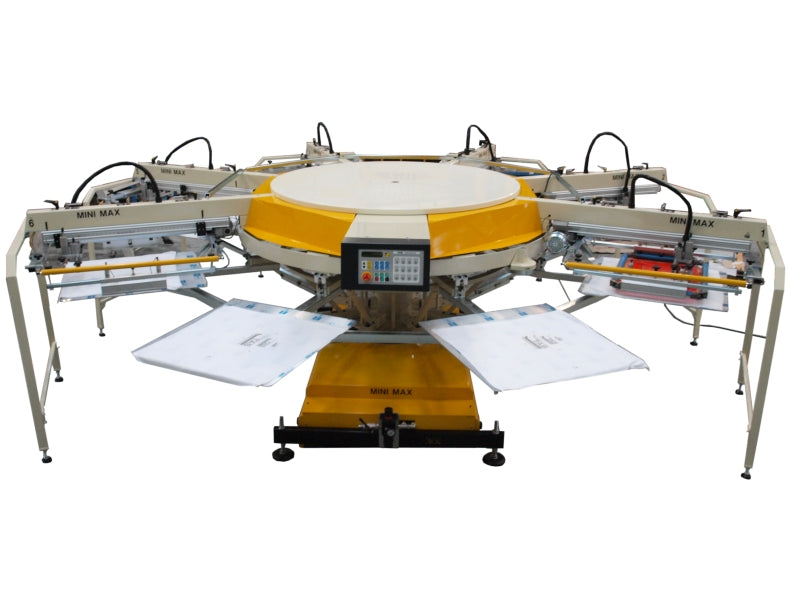

MiniMax is the ideal choice for those wanting to print all over garments, but have little floor space available. With a standard print area of 81cm x 76cm (32" x 30") the MiniMax has an outside diameter of only 576cm (18’ 09") for our 8 colour version, so providing ‘Maximum applications and Minimum floor space!
Couldn't load pickup availability
Refresh
MINIMAX-6
Specifications
Colours : 6
Stations : 8
Indexer : ELECTRIC
Print Heads : ELECTRIC
Max Outside Frame Size : 1016mm X 1067mm (40" X 42")
Max Print Area : 813mm x 762mm (32" X 30")
Diameter : 5162mm (16' 11")
Weight : 2250Kg (4960lb)
Standard Pallet Size : 838mm X 890mm (33" X 35")
Standard Squeegees & Flood Bars : 838mm
Standard Squeegee Rubbers : 838mm
Electrical Requirements 220v/3Ph : 24.6amps 50/60hz
Electrical Requirements 380-415v/3Ph : 35.6amps 50/60hz
Compressed Air Requirement : 4 l/sec 8cfm @ 100 psi
Micro Reg Adjustment : STANDARD
AC Electric Rotation & Print Heads : Standard
Central Off Contact : Standard
Roto Print Program : Standard
Squeegee Cylinders Knurled Knobs : Standard
Squeegee Pressure Regulators : Standard
Pneumatic Screen Clamping : Standard
Multi-Functional Foot Switch Pedal : Standard
Individual Head Off Contact : Standard
Front, Centre & Rear Micro Registration : Standard
Calibrated Individual Off-Contact : Optional
