HAWK HX Series is our intermediate size machine, with a generous print area of up to 50cm x 63cm (20” x 25”). Probably our most popular model, the Hawk series is available in up to 16 colours upon request.
Couldn't load pickup availability
Refresh

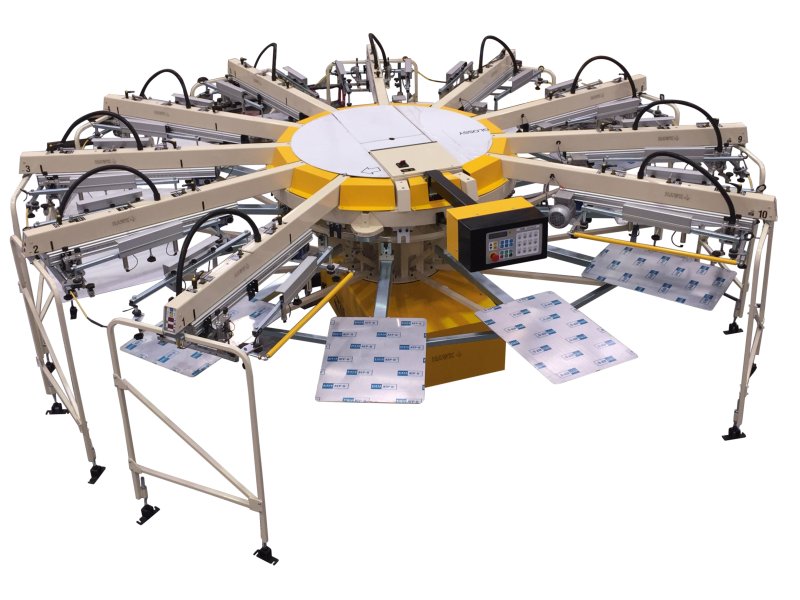

Hawk HX10
Specifications
Colours : 10
Stations : 12
Indexer : Electric
Print Heads : Electric
Max Outside Frame Size : 660mm X 940mm (26" X 37")
Max Print Area : 508MM X 635mm (20" X 25")
Diameter : 5002mm (16' 4")
Weight : 2100Kg (4629lb)
Standard Pallet Size : 470mm X 762mm (18.5" X 30")
Standard Squeegees & Flood Bars : 460mm
Standard Squeegee Rubbers : 65 duro
Electrical Requirements 220v/3Ph : 15amps 50/60hz
Electrical Requirements 380-415v/3Ph : 17amps 50/60hz
Compressed Air Requirement : 5.5 l/sec 12cfm @ 100 psi
Micro Reg Adjustment : Standard
AC Electric Rotation & Print Heads : Standard
Central Off Contact : Standard
Roto Print Program : Standard
Squeegee Cylinders Knurled Knobs : Standard
Squeegee Pressure Regulators : Standard
Pneumatic Screen Clamping : Standard
Multi-Functional Foot Switch Pedal : Standard
Individual Head Off Contact : Standard
Front, Centre & Rear Micro Registration : Standard
Calibrated Individual Off-Contact : Optional
