TAS

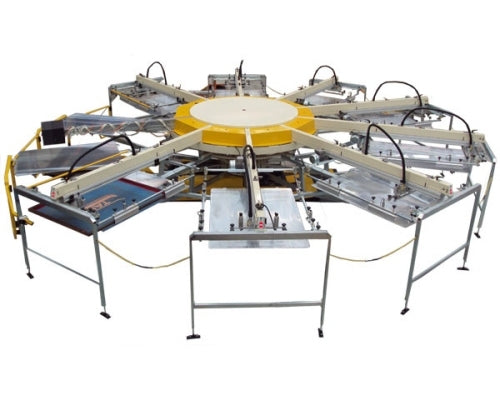

4000-4X Series is our ultimate machine.Possessing all the standard features of our other range of machinery, our 4000 series offers the world’s largest print area of any automatic carousel machine, currently, the largest being a staggering 114cm x 190cm (45” x 75”) in special 4 four colours custom made 4XL to meet printing requirements
Couldn't load pickup availability
Refresh
4X10
Specifications
Colours : 10
Stations : 12
Indexer : Electric
Print Heads : Electric
Max Outside Frame Size : 940mm X 1702mm (37" X 67")
Max Print Area : 762mm X 1375mm (30" X 54")
Diameter : 7606mm (24' 11")
Weight : 3825Kg (8432lb)
Standard Pallet Size : 788mm X 1498mm (31" X 59")
Standard Squeegees & Flood Bars : 780mm
Standard Squeegee Rubbers : 65 duro
Electrical Requirements 220v/3Ph : 31amps 50/60hz
Electrical Requirements 380-415v/3Ph : 42amps 50/60hz
Compressed Air Requirement : 11 l/sec 22 cfm @ 100 psi
Micro Reg Adjustment : Standard
AC Electric Rotation & Print Heads : Standard
Central Off Contact : Standard
Roto Print Program : Standard
Squeegee Cylinders Knurled Knobs : Standard
Squeegee Pressure Regulators : Standard
Pneumatic Screen Clamping : Standard
Multi-Functional Foot Switch Pedal : Standard
Individual Head Off Contact : Standard
Front, Centre & Rear Micro Registration : Standard
Calibrated Individual Off-Contact : Optional
