TAS

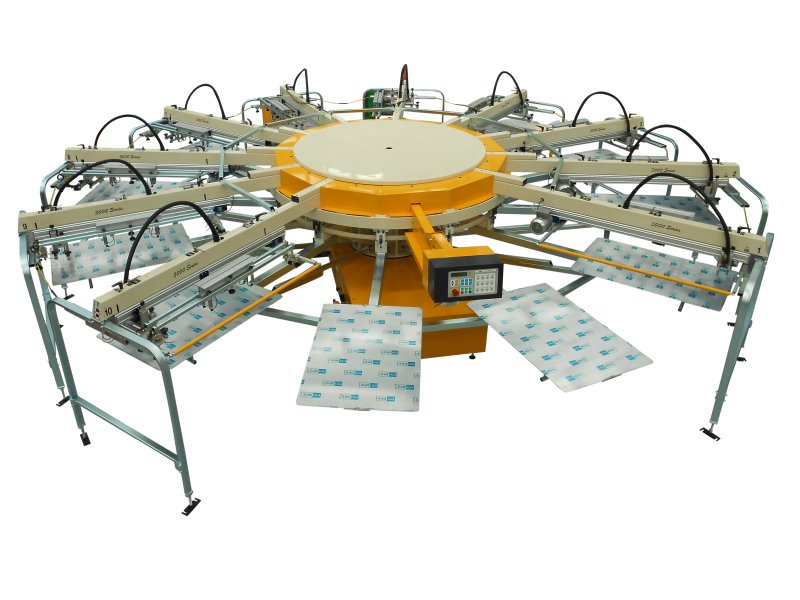

3000-3X Series offers an enormous maximum print area of up to 71cm x 105cm (28” x 41”) and beyond (upon request). This machine is able to print all-over garments in up to 14 colours.
Couldn't load pickup availability
Refresh
3X10
Specifications
Colours : 10
Stations : 12
Indexer : Electric
Print Heads : Electric
Max Outside Frame Size : 865mm X 1430mm (34" X 56.5")
Max Print Area : 711mm X 1055mm (28" X 41.5")
Diameter : 6575mm (21' 6")
Weight : 3300Kg (7275lb)
Standard Pallet Size : 610mm X 1120mm (24" X 44")
Standard Squeegees & Flood Bars : 600mm
Standard Squeegee Rubbers : 65 duro
Electrical Requirements 220v/3Ph : 31amps 50/60hz 50/60hz
Electrical Requirements 380-415v/3Ph : 42amps 50/60hz
Compressed Air Requirement : 7.5 l/sec 16 cfm @ 100 psi
Micro Reg Adjustment : Standard
AC Electric Rotation & Print Heads : Standard
Central Off Contact : Standard
Roto Print Program : Standard
Squeegee Cylinders Knurled Knobs : Standard
Squeegee Pressure Regulators : Standard
Pneumatic Screen Clamping : Standard
Multi-Functional Foot Switch Pedal : Standard
Individual Head Off Contact : Standard
Front, Centre & Rear Micro Registration : Standard
Calibrated Individual Off-Contact : Optional
