TAS
2000-2X Series is available in up to 20 colours and offers a huge standard print area of 56cm x 76cm (22” x 30”). The 2000 series will provide solutions for almost every design you need to print in this diverse and dynamic industry.
Couldn't load pickup availability
Refresh

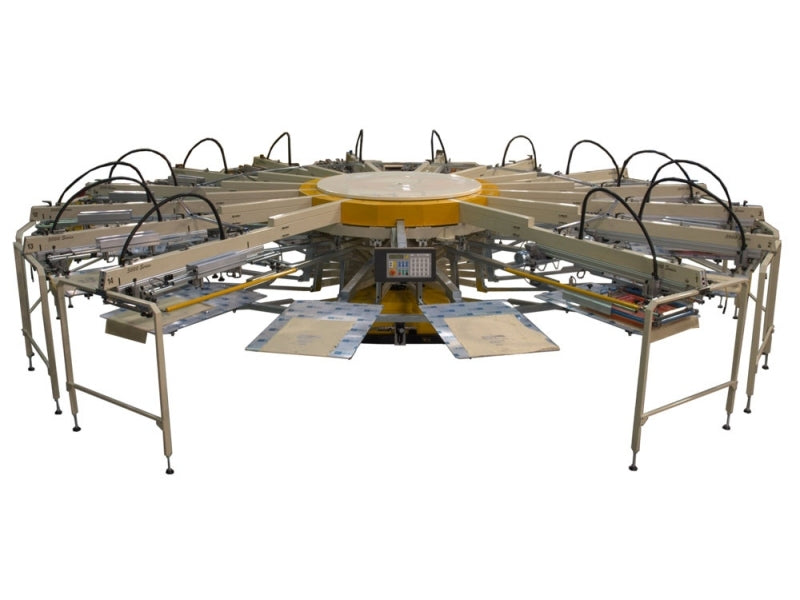

2X14
Specifications
Colours : 14
Stations : 16
Indexer : Electric
Print Heads : Electric
Max Outside Frame Size : 711mm X 1067mm (28" X 42")
Max Print Area : 559mm X 762mm (22" X 30")
Diameter : 6360mm (14' 3")
Weight : 3500Kg (7716lb)
Standard Pallet Size : 570mm X 890mm (22.5" X 35")
Standard Squeegees & Flood Bars : 560mm
Standard Squeegee Rubbers : 65 duro
Electrical Requirements 220v/3Ph : 38ampss 50/60hz
Electrical Requirements 380-415v/3Ph : 40amps 50/60hz
Compressed Air Requirement : 9 l/sec 20cfm @ 100 psi
AC Electric Rotation & Print Heads : Standard
Central Off Contact : Standard
Roto Print Program : Standard
Squeegee Cylinders Knurled Knobs : Standard
Squeegee Pressure Regulators : Standard
Pneumatic Screen Clamping : Standard
Multi-Functional Foot Switch Pedal : Standard
Individual Head Off Contact : Standard
Front, Centre & Rear Micro Registration : Standard
Calibrated Individual Off-Contact : Optional
